KEY FEATURES:
- 97 db 1W / 1m average sensitivity
- 44 mm high temperature voice coil
- 300 W AES program power
- Epoxy anti-corrosion coating of top and back plates of magnet structure
PART NUMBER: 11106N0408
Application : Power midrange speaker
The 6NM150 is high efficiency, high power midrange neodymium loudspeaker, specially designed to use in 3 way boxes and line array systems. It features 44 mm aluminium voice coil, vented aluminium die cast frame with powerful neodymium magnet structure, which achieved very light weight of the speaker. The top and back plates are treated with special high quality epoxy electro-deposition coating, which extremely improves the corrosion resistance of the speaker.
SPECIFICATIONS
Nominal Diameter
Impedance
Minimum Impedance
Power Capacity AES ¹
Program Power ²
Sensitivity
Frequency Range
Voice Coil Diameter
Voice Coil Material
Voice Coil Former
V. C. Winding Depth
Magnet Gap Depth
Cone Material
Basket
Magnet
Flux Density
6.5"/170 inch/mm
8 Ohm
7.22 Ohm
150 W
300 W
(500-5000 Hz) 97 dB/W/m
200 – 5000 Hz
44 mm
Aluminium
Kapton™
8 mm
7 mm
Paper
Die cast aluminium
Neodymium
1.42 T
THIELE-SMALL PARAMETERS
124 Hz
5.96
0.403
0.377
4.00 Litres
11.08 grams
6.25 Ohms
139 cm2
± 2.25 mm
0.148 mm/N
11.58 T.m
0.30 mH
1. AES standard. Power is calculated on rated minimum impedance. Measurement is in 9 L box enclosure tuned 70 Hz using a 100-2000 Hz band limited pink noise test signal applied continuously for 2 hours.
2. Program power is defined as 3db greater than AES Power Capacity.
* Linear Mathematical Xmax is calculated as: (Hvc - Hg)/2 + Hg/4 where Hvc is the voice coil depth and Hg is the gap depth.
MOUNTING INFORMATION
Overall Diameter
Baffle Hole Diameter
Mounting Holes
Bolt Circle Diameter
Overall Depth
Net Weight
185 mm
145 mm
4 elliptic 5.5 / 6.5 mm
172 mm
71.8 mm
1.07 kg
RECONE KIT:
RK6NM150 - Part No: R1106N0408

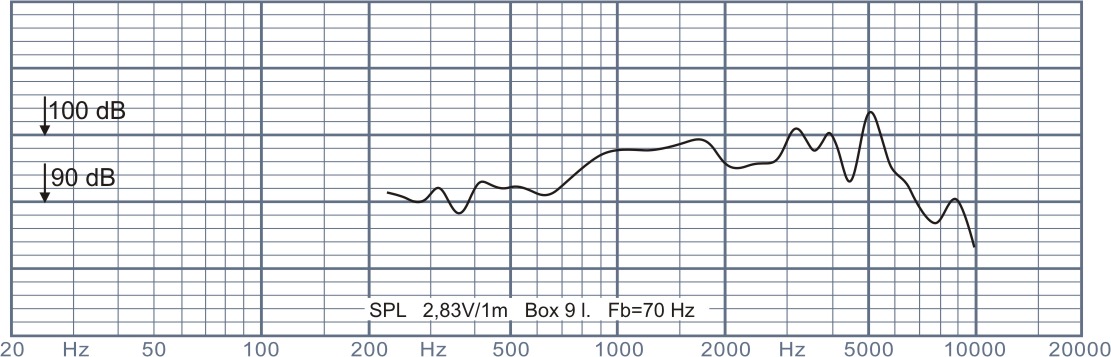

Frequency Response
