15H4CX72

NEW 15" Coaxial Neodymium Loudspeaker, 4" LF + 2.85" HF voice coil, 400 W + 100 W , 101.5 dB + 110 dB

KEY FEATURES:

101.5 db SPL 1W / 1m ( LF ) average sensitivity
100 mm ( 4”) high temperature voice coil ( LF )
800 W AES program power ( LF )
Aluminium demodulating ring
Silicon spider
Copper plated pole piece and top plate (LF)
Water protected cone - front
1.4” exit HF neodymium compression driver
72 mm (2.85”) HF high temperature voice coil
60 degrees conical integrated horn
Epoxy anti-corrosion coating of top and back plates of magnet structure

PART NUMBER: 13115N0108

Application: Stage monitors and compact bass reflex boxes.

Description: The 15H4CX72 is a 15" / 1.4" coaxial transducer designed for use in compact reflex enclosures and high end stage monitors with a nominal dispersion 60 degrees conical.

The low profile, smooth curvilinear LF cone provides smooth response within its intended frequency range and water prove protective coating, allowing application in a wide range of environments. The state-of-the-art extreme light 100 mm (4 in) LF voice coil ensure low Mms which gives perfect voice reproduction.

The aluminium demodulating ring in the magnet structure reduces distortion and inductance and together with copper plated pole piece and top plate improve transient response.

The neodymium 1.4" exit compression driver adopted is our ND72HB model.

The HF driver diaphragm assembly, using hybrid dome this together with phasing plug improve linearity of frequency response in high end. The double magnetic structure allow to get maximum performance.

The HF part of magnet structure has cooper ring on the pole piece, which reduces the inductance figure of frequencies above 10 kHz, improving phase and impedance linearisation. This ensures extremely high SPL in the high end of the frequency response.

SPECIFICATIONS

Nominal diameter
Impedance
Minimum impedance LF
Frequency range
Dispersion angle

LF unit
Sensitivity (200-1000 Hz)
Power Capacity AES ¹
Program Power ²
Voice Coil Diameter
Voice Coil Material
Voice Coil Former
V. C. Winding Depth
Magnet Gap Depth
Cone Material
Basket
Magnet
Flux Density

HF unit
Minimum impedance HF
DC resistance
Sensitivity (1-15 kHz)
Power capacity (1-20 kHz)
Program power
Voice coil diameter
Winding material
Diaphragm material
Flux density

388 mm (15 in)
LF 8 Ohm /HF 16 Ohm
7 Ohm
50 - 18000 Hz
60 deg

101.5 dB
400 W
800 W
100 mm (4 in)
Copper Clad Aluminium
Glassfiber
6 mm
12 mm
Paper
Die Cast Aluminium
Neodymium
1.37 T

11.29 Ohms
10 Ohms
110 dB
100 W
200 W
72 mm (2.85 in)
Copper Clad Aluminium
Hybrid
2 T

THIELE-SMALL PARAMETERS

Qms

Qes

Qts

Vas

Mms

Xmax*

Cms

Le at 1kHz

56.29 Hz
11.50
0.379
0.367
113.09 L
55.65 g
6.4 Ohms
750 cm2
± 4.5 mm
0.144 mm/N
18.223 T.m
0.381 mH

1. AES standard. Power is calculated on rated minimum impedance. Measurement is in 125 L box enclosure tuned 56 Hz using a 40-400 Hz band limited pink noise test signal applied continuously for 2 hours.
2. Program power is defined as 3db greater than AES Power Capacity.
* Linear Mathematical Xmax is calculated as: (Hvc - Hg)/2 + Hg/4 where Hvc is the voice coil depth and Hg is the gap depth.

MOUNTING INFORMATION

Overall diameter
Depth
Baffle hole diameter
Bolt circle diameter
Mounting holes
Net weight

388 mm (15 in)
242 mm
352 mm
370/372 mm
8 eliptic 7x8 mm
10.5 kg

LF Recone Kit:
RK15H4CX72, part No: R3115N0108

HF Service Kit:
Diaphragm assembly:
DA76HB/h-16 part No: R412800516

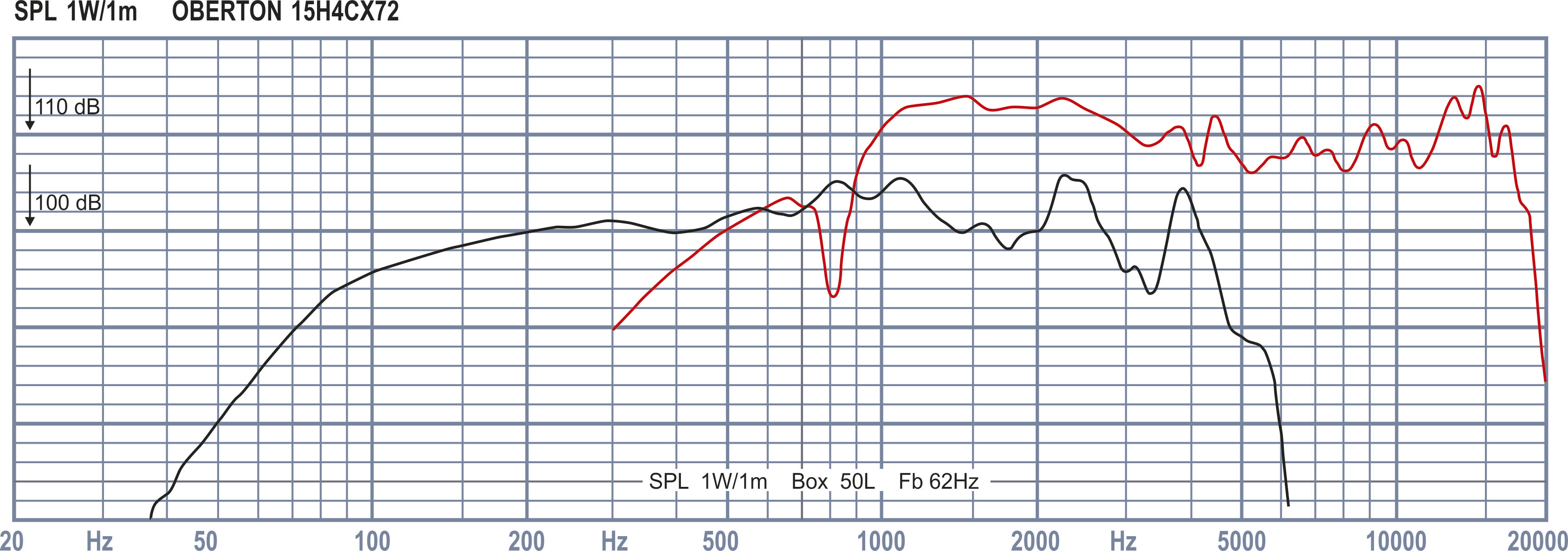

15H4CX72 Cevlar with cap HF LF 1W MCX15

Frequency Response

Download PDF

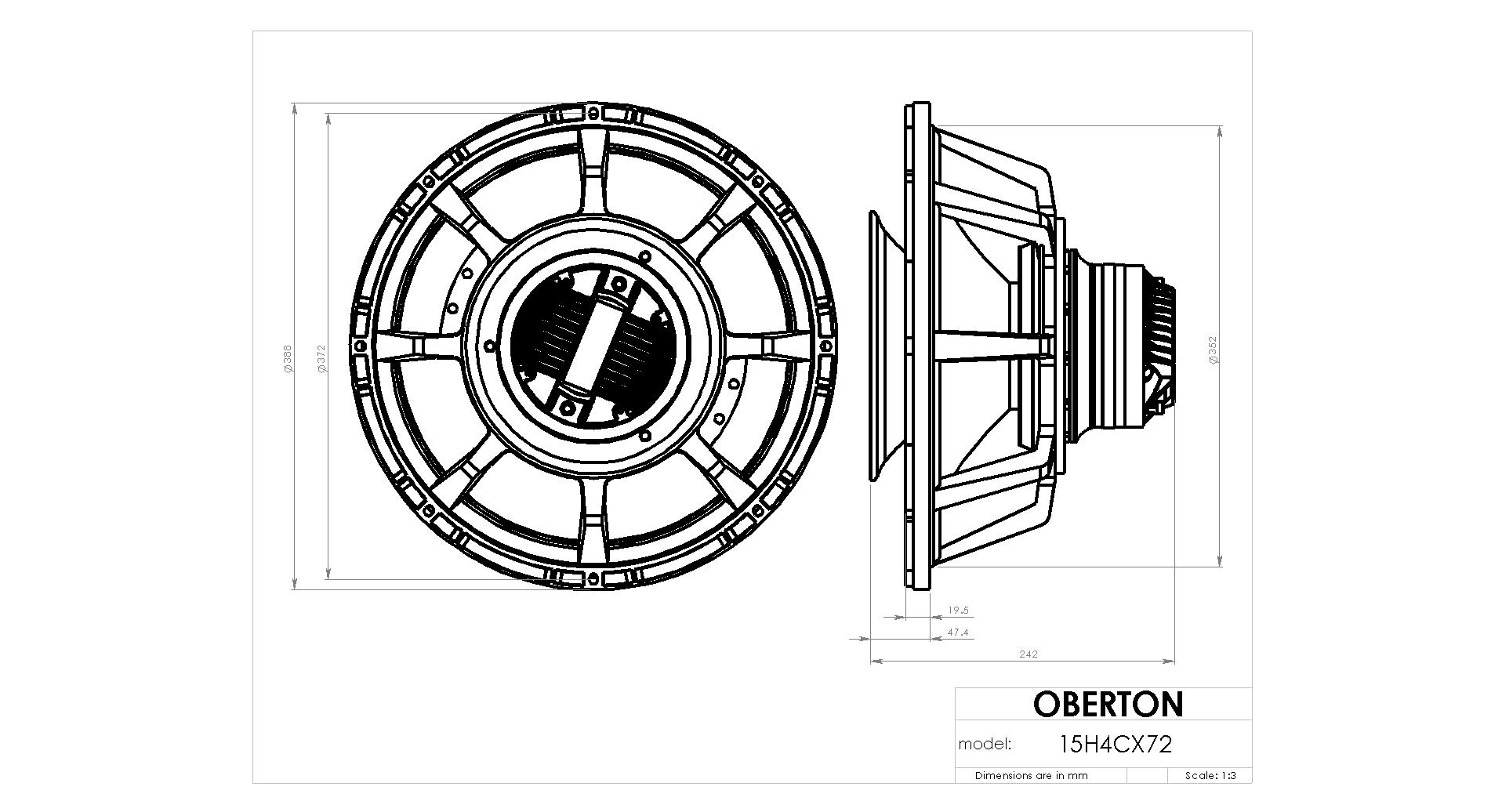

assem 15h4cx72
