KEY FEATURES:
- 100.5 db 1W / 1m average sensitivity
- 64 mm high temperature aluminium voice coil
- 600 W AES program power
- Powerful, ferrite 169 mm magnet structure
- Silicone spider
- Epoxy anti-corrosion coating of top and back plates of magnet structure
PART NUMBER: 11112F0708
Application : Woofer with extended mid for live music
The 12L300 loudspeaker is combining high efficiency, wide range and high power handling capability with use of 64 mm aluminium voice coil. It features vented aluminium die cast frame, 169 mm magnet structure and curvilinear cone. 12L300 is suitable for application as LF driver in a compact 2 way PA boxes.
SPECIFICATIONS
Nominal Diameter
Impedance
Minimum Impedance
Power Capacity AES ¹
Program Power ²
Sensitivity
Frequency Range
Voice Coil Diameter
Voice Coil Material
Voice Coil Former
V. C. Winding Depth
Magnet Gap Depth
Cone Material
Basket
Magnet
Flux Density
12"/310 inch/mm
8 Ohm
6.20 Ohm
300 W
600 W
(200-2000 Hz) 100.5 dB/W/m
60 - 5000 Hz
64 mm
Aluminium
Kapton™
11 mm
9 mm
Paper
Die cast aluminium
Ferrite
1.35 T
THIELE-SMALL PARAMETERS
53.80 Hz
9.98
0.261
0.254
79.63 Litres
40.65 grams
5.35 Ohms
514.7 cm2
± 3.25 mm
0.215 mm/N
16.78 T.m
0.69 mH
1. AES standard. Power is calculated on rated minimum impedance. Measurement is in 65 L box enclosure tuned 63 Hz using a 40-400 Hz band limited pink noise test signal applied continuously for 2 hours.
2. Program power is defined as 3db greater than AES Power Capacity.
* Linear Mathematical Xmax is calculated as: (Hvc - Hg)/2 + Hg/4 where Hvc is the voice coil depth and Hg is the gap depth.

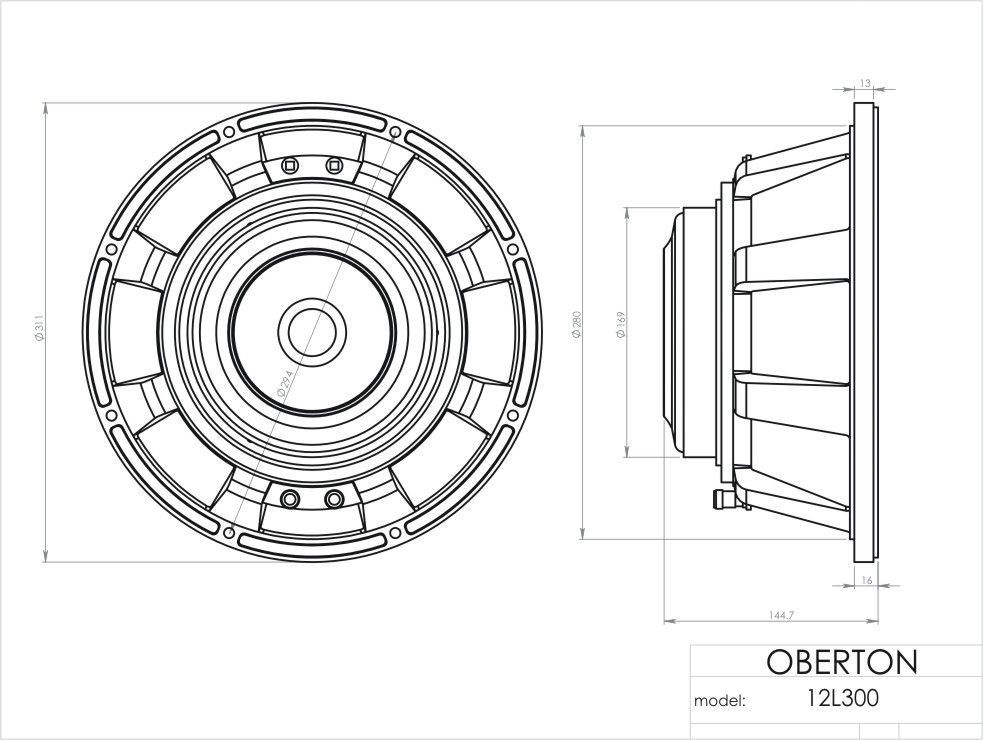

MOUNTING INFORMATION
Overall Diameter
Baffle Hole Diameter
Mounting Holes
Bolt Circle Diameter
Overall Depth
Net Weight
311 mm
280 mm
8 with dia. 7 mm
294 mm
144.7 mm
6.8 kg
RECONE KIT:
RK12L300 - Part No: R1112F0708
Frequency Response
